E-MAXI Shunter
The Zagro E-MAXI is designed with the aim of allowing you to work as efficiently as possible. The E-MAXI makes moving locomotives and wagons easy work for one person. This is possible by means of the remote control. This makes the work safe and effective. Because of the electric powertrain, this is done without emissions and requires minimal maintenance. In addition, the E-MAXI is easy to maneuver due to all-wheel steering and the ability to turn the wheels 130 degrees. The E-MAXI is available in several specifications
Zagro E-MAXI:
- Suitable for free standing and embedded track
- Electric, stepless powertrain with a maximum speed of 3-6 kph
- Remote control for road and rail steering
- Turn on the spot by means of all-wheel steering
- Different coupling systems possible
- Possibility of seating and a cabin
E-MAXI MINI Shunter
Technical Specifications:
Tow weight:
Weight:
Track gauge:
Drive:
Maximum speed:
50 tons
106 KG
840 to 920 mm
Electric, 24V/1.0 kW motor and 2x 12V/115 Ah battery
3 km/hour
E-MAXI S Shunter
Technical Specifications:
Tow weight:
Weight:
Track gauge:
Drive:
Maximum speed:
100 tons
4.3 tons
1000 to 1676 mm
Electric, 2WD
6 km/hour
E-MAXI M Shunter
Technical Specifications:
Tow weight:
Weight:
Track gauge:
Drive:
Maximum speed:
300 tons
4.5 tons
1000 to 1676 mm
Electric, 4WD
6 km/hour
E-MAXI L Shunter
Technical Specifications:
Tow weight:
Weight:
Track gauge:
Drive:
Maximum speed:
350 tons
5.1 – 6.5 tons
1435 to 1676 mm
Electric, 4WD, 2 x 625 Ah / 40 V battery
6 km/hour
E-MAXI XL Shunter
Technical Specifications:
Tow weight:
Weight:
Track gauge:
Drive:
Maximum speed:
750 – 1000 tons
7.5 – 15 tons
1000 to 1676 mm
Available Electric & Hybrid, 4WD
6 km/hour
E-MAXI XXL Shunter
Technical Specifications:
Tow weight:
Weight:
Track gauge:
Drive:
Maximum speed:
2000 tons
24 tons
1000 to 1676 mm

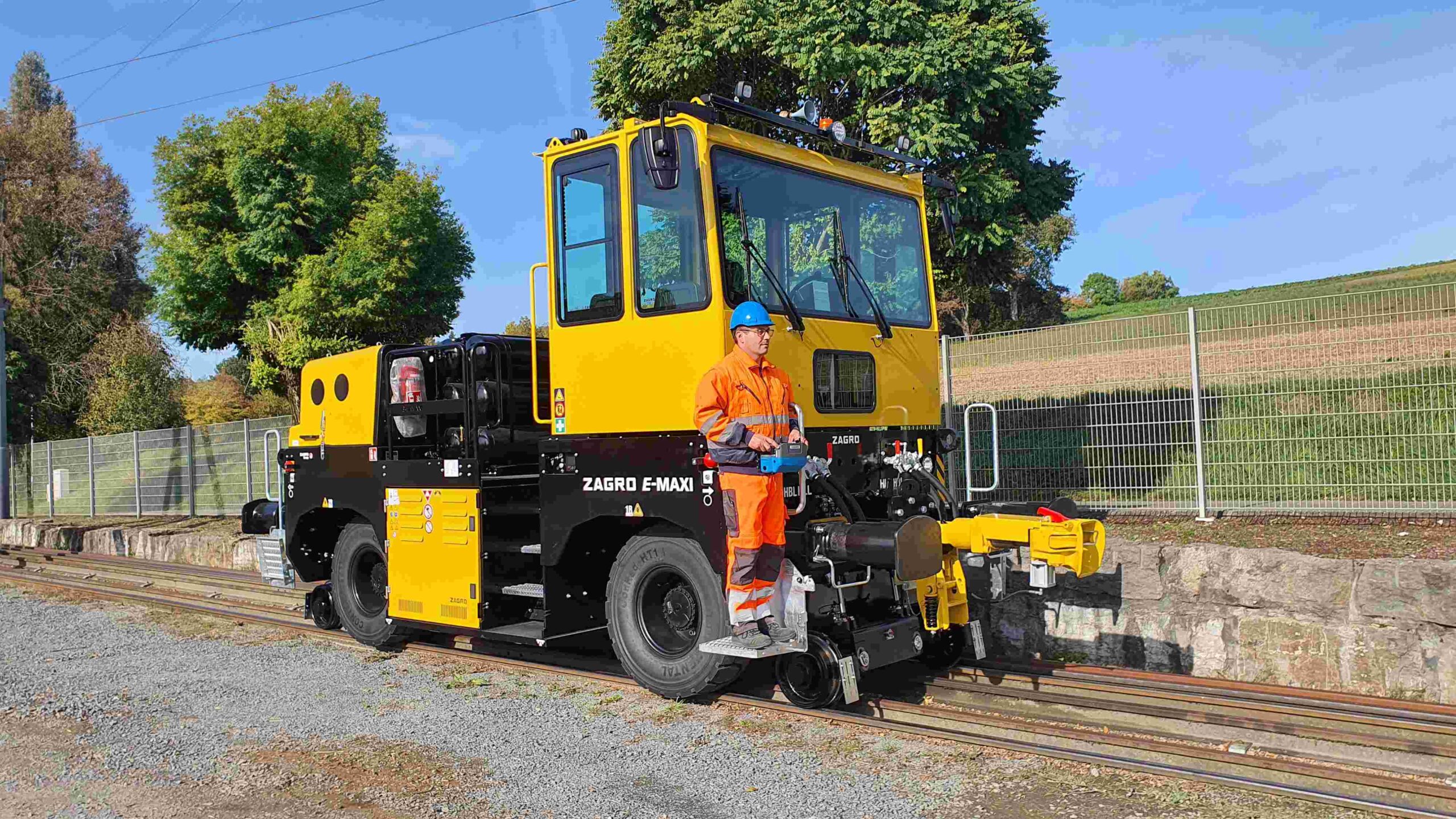

Available Electric & Hybrid, 4WD, 4 motors of 80 V / 20 kW per motor, Battery 2x 980 Ah / 80 V
15 km/hour
Wagon brake system with screw compressor
800L/min @ max. 10bar, 6x85L tank
Also available as a rail-bound version
