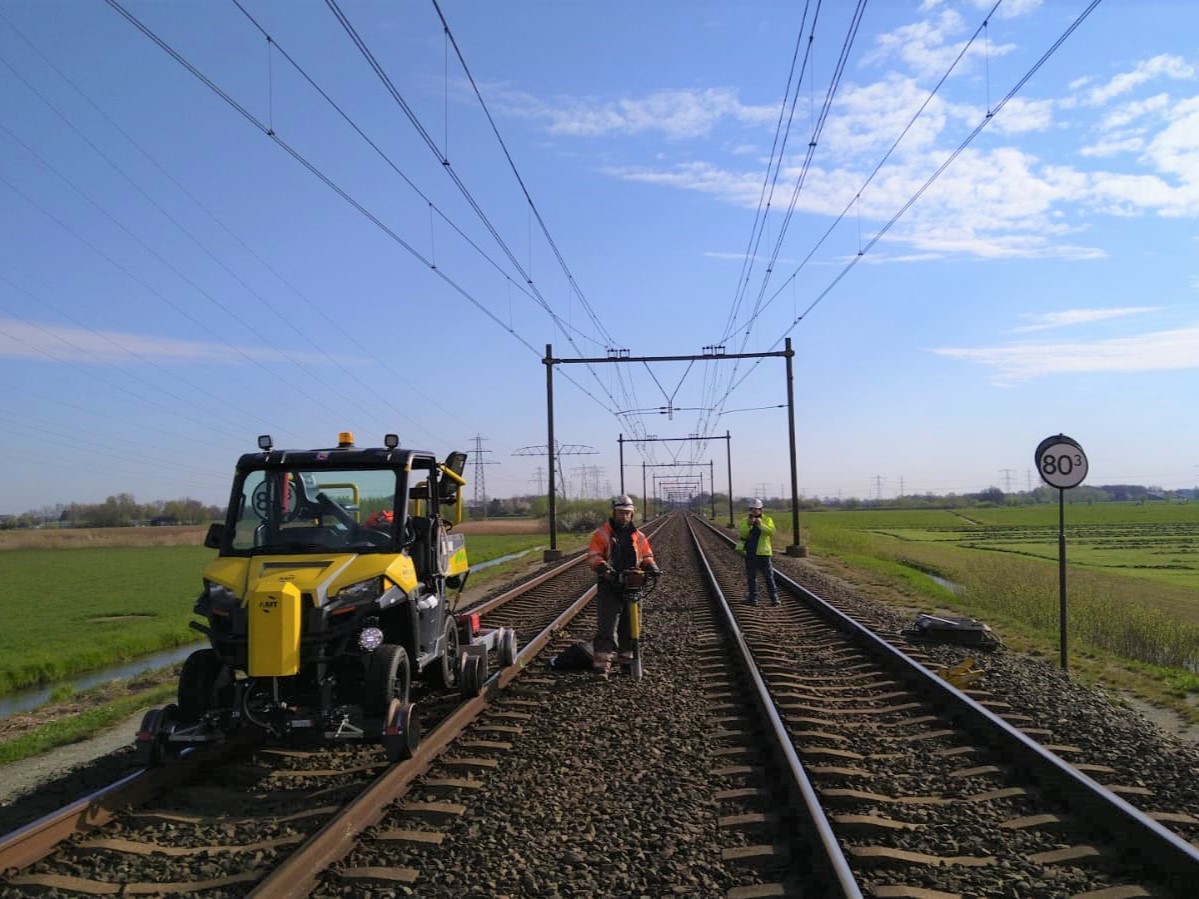

The AMT Rail ATV is designed to make work on and around the track more efficient and easier. The operation is simple, the technology robust and the maintenance interval is low.

The AMT Rail ATV is suitable for two persons and has its own loading platform (1000 x 500 cm). In less than one minute you can be up and running operationally on the railroad thanks to the simple controls. The ATV is hydraulically powered and includes an electric safety indicator.

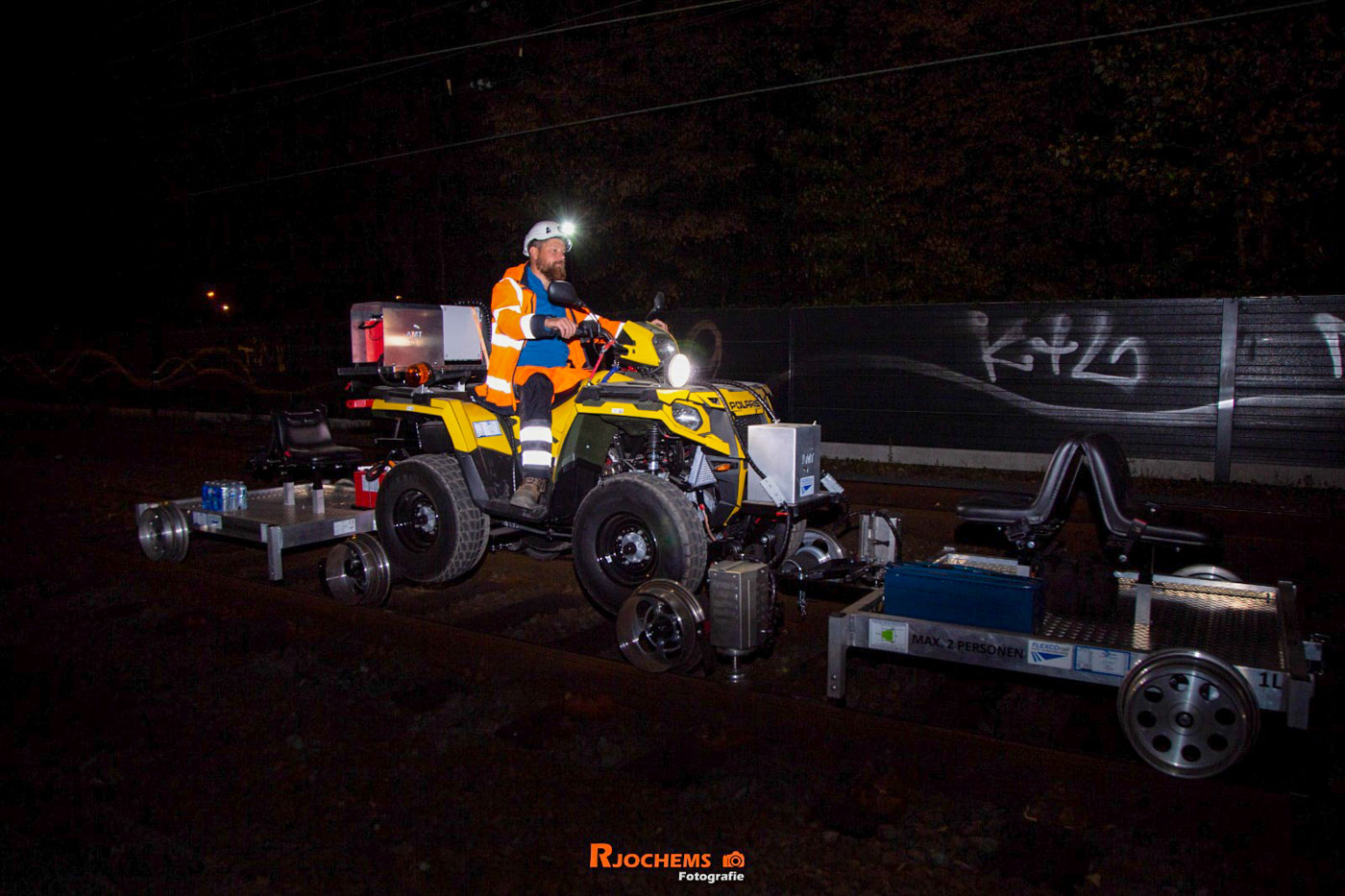

Because of its low weight, the ATV can be transported on a small trailer driven by someone with BE driver’s license. The ATV can be used in combination with two lightweight aluminum lorries. Each with a capacity of 400 kg, or equipped with removable seats for 2×2 persons.

The AMT Rail ATV is a ‘high rider’ and complies with European laws and regulations according to NEN EN 15746. This means that this quad can be used practically anywhere.

ATV:

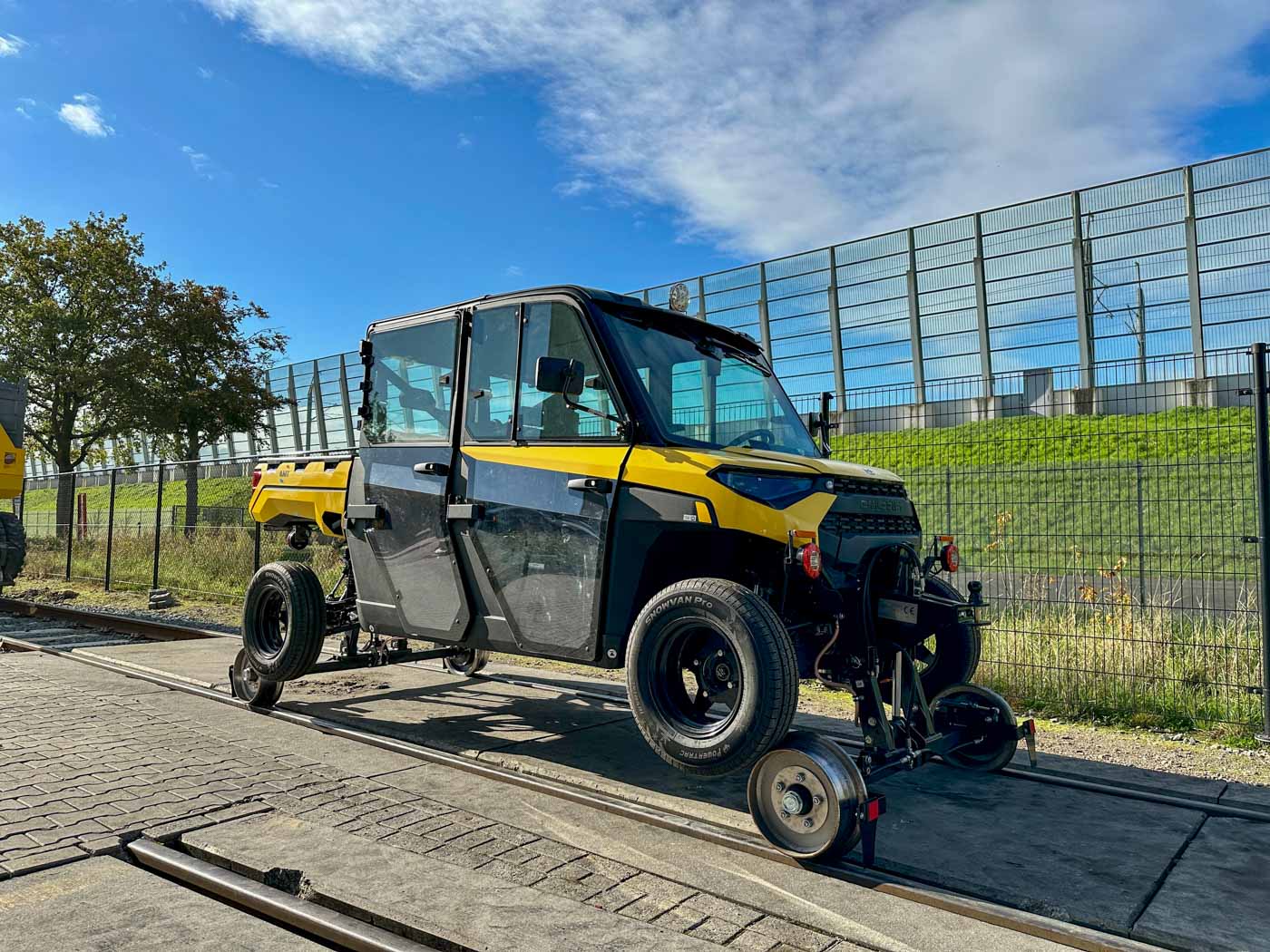

Base vehicle: Dimensions: Weight: Engine: Speed (street):
Polaris Ranger 3000 x 1600 x 1850 mm (L x W x H) on tracks 815 kg Fully electric, gasoline or diesel, AWD drive, Hi-Lo gear limited 3o km/h

Rail system:

Wheels: Steering: Payload: Weight: Speed: According to:

340 mm UIC or customer-specific Electrohydraulically operated max. 2-6 persons + 225 kg (worktop) 350 kg limited 20 km/h EN 15746 1/2

ATV (QUAD):

Base vehicle: Dimensions: Weight: Engine: Speed (street):
Polaris Sportsman 570 sage 2500 x 1600 x 1400 mm (L x W x H) on tracks 330 kg Gasoline 44hp, AWD drive, Hi-Lo gear limited 15 km/h

Rail system:

Wheels: Steering: Payload: Weight: Speed: According to:

340 mm UIC or customer-specific Electrohydraulically operated max. 2 persons + 100 kg (worktop) 350 kg limited 20 km/h EN 15746 1/2
